Feeder Pillars

These root mounted feeder pillars are a compact and sturdy pillar, with anti-rotation lift-off doors.

Designed to accommodate a street lighting cut-out and isolator, and are supplied with hot dipped galvanised corrosion protection.

Budget Mini Pillar, H700 mm x W160 mm x D150 mm c/w 300 mm root Mini Pillar with removable door and 130 mm working depth.

• 3mm galvanised mild steel c/w 12mm
• Backboard H600 mm x W150 mm

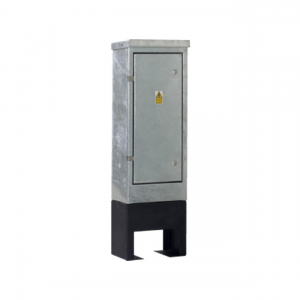

Galvanised hinged door feeder pillar, H850 mm x W350 mm x D225 mm c/w 300 mm painted root 205 mm working depth.

• 3 mm galvanised mild steel c/w 12 mm
• Backboard H750 mm x W330 mm

Galvanised hinged door feeder pillar, H950 mm x W450 mm x D250 mm c/w 300 mm painted root 230mm working depth.

• 3mm galvanised mild steel c/w 12mm
• Backboard H850 mm x W430 mm

Galvanised hinged door feeder pillar, H1250 mm x W800 mm x D325 mm c/w 300 mm painted root 295 mm working depth.

• 3 mm galvanised mild steel c/w 12 mm
• Backboard H1150 mm x W 780 mm

Galvanised hinged door feeder pillar, H1250 mm x W1000 mm x D325 mm c/w 300 mm painted root 305 mm working depth.

• 3 mm galvanised mild steel c/w 12 mm
• Backboard H1150 mm x W 980 mm.
